DC Regulated Power Supply

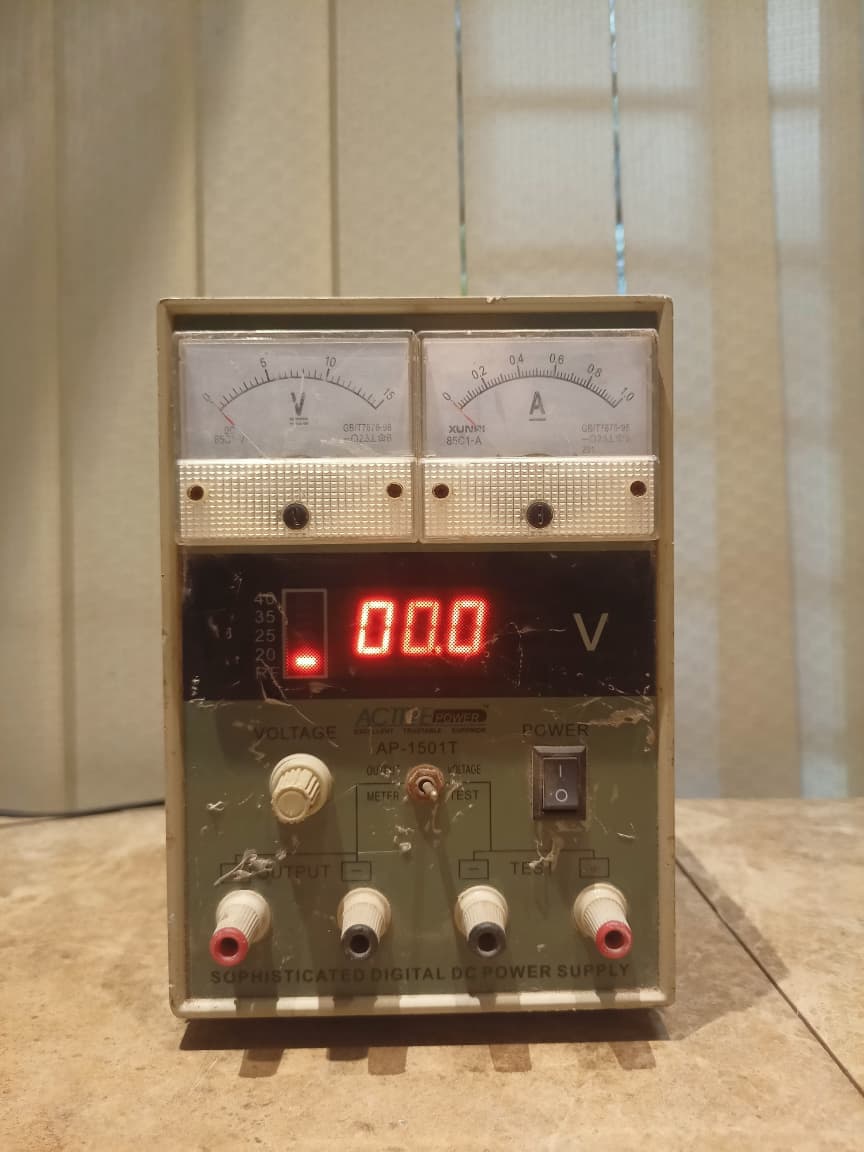

Key SpecificationsVoltage Output: Adjustable from 0 to 15V DC.Current Output: Maximum 1A (highly optimized for detecting small current leaks or parasitic draws on motherboards).Digital Display: Shows real-time output voltage.Analog Dual Meters: Two top needle meters gauge fine variations in Voltage (V) and Amperage (A) simultaneously.Interface & ControlsVoltage Selection Knobs & Level Switch: The stepped indicator on the left lets you choose between preset levels (such as fixed common diagnostic zones like 4.5V, 3.6V, 2.5V, etc.) or fully adjustable manual tuning via the white knob.Meter / Test Toggle: Allows switching between measuring the internal source voltage output and tracking external voltage tests.Output / Test Terminals: Red and black binding posts at the bottom receive standard banana plugs to route regulated DC power directly to logic boards
